# multinma
### An R package for Bayesian network meta-analysis of individual and aggregate data

#### David Phillippo

---

## NMA and population adjustment

.c2left[
Standard (network) meta-analysis and indirect comparison methods
* Synthesise published aggregate data (AgD)
* Assume **constancy of relative effects**
`$$d_{AB(AB)} = d_{AB(AC)}$$`
]
.c2right[.center[
![](multinma_pres_files/figure-html/ic-network-1.svg)
]]

**Population adjustment** methods aim to relax this assumption using available individual patient data (IPD) to adjust for differences in effect modifiers between studies

* Ideally, we would have IPD from every study (IPD network meta-regression)
* More typically we only have IPD from a subset

---

## Multilevel network meta-regression (ML-NMR)

.footnote[Phillippo et al. (2020) Multilevel Network Meta-Regression for population-adjusted treatment comparisons. *J R Stat Soc: A*, 183(3):1189-1210. [DOI: 10.1111/rssa.12579](https://doi.org/10.1111/rssa.12579)]

Extends the NMA framework to synthesise mixtures of IPD and AgD and perform population adjustment in networks of any size

.c2left[
1\. Define an individual-level regression model

* IPD network meta-regression
]
.c2right.nt3[.center[
<img src="multinma_pres_files/figure-html/unnamed-chunk-2-1.svg" width="125" />
]]

.flex[
.c2left.nt3[

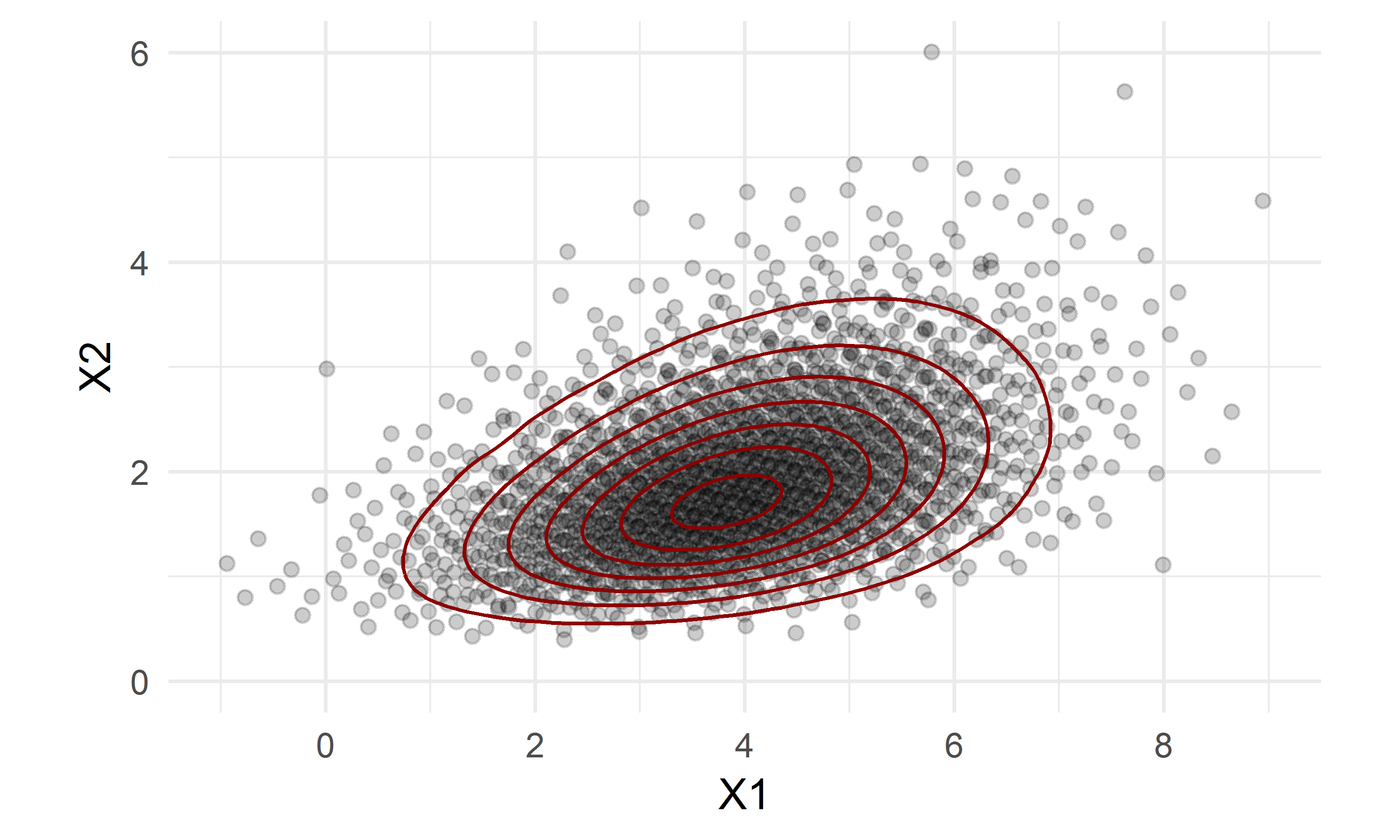

2\. Average (integrate) this over the aggregate study populations to form the aggregate-level model

* Use efficient and general numerical integration
]
.c2right.nt3[![](figs/qmc_scatter_joint.png)]
]

---
class: middle, inverse

# The {multinma} package

---

## The multinma package

.bg-washed-green.b--dark-green.ba.bw1.br3.ph3[
A suite of tools for performing ML-NMR and NMA with IPD, AgD, or mixtures of both, for a range of outcome types
]

The package includes functions that
 * Streamline the setup of NMA and ML-NMR models
 * Perform model fitting and facilitate diagnostics
 * Produce posterior summaries of relative effects, rankings, and absolute predictions
 * Create flexible graphical outputs that leverage `ggplot` and `ggdist`

Models are estimated in a Bayesian framework using *Stan*
 * Precompiled on CRAN (no user C++ toolchain / Rtools required)

---

## Outline of NMA in multinma

1\. Data in long ("tidy") format
  * One row per arm/contrast per AgD study, or per individual in IPD

2\. Define the network
  * `set_agd_arm()` &emsp; `set_agd_contrast()` &emsp; `set_ipd()`
  * `combine_network()`

3\. Specify prior distributions, run analysis
  * `nma()`
  * Fixed and random effects, UME inconsistency models, regression, ...

4\. Check convergence, model fit, results
  * `print()` &emsp; `plot()` &emsp; `plot_prior_posterior()` &emsp; `dic()`
  * `relative_effects()` &emsp; `predict()` &emsp; `posterior_ranks()`

---

## Outline of ML-NMR in multinma
.o-50[
1\. Data in long ("tidy") format
  * One row per arm/contrast per AgD study, or per individual in IPD

2\. Define the network
  * `set_agd_arm()` &emsp; `set_agd_contrast()` &emsp; `set_ipd()`
  * `combine_network()`
  ]

.bg-washed-green.b--dark-green.ba.bw1.br3.nl3.ph3[
3\. Set up numerical integration
  * `add_integration()` &emsp; `distr()`
]

.o-50[
4\. Specify prior distributions, run analysis
  * `nma()`
  * Fixed and random effects, UME inconsistency models, regression, ...

5\. Check convergence, model fit, results
  * `print()` &emsp; `plot()` &emsp; `plot_prior_posterior()` &emsp; `dic()`
  * `relative_effects()` &emsp; `predict()` &emsp; `posterior_ranks()`
]

---
class: middle, inverse

# Example
## Plaque Psoriasis ML-NMR

---

.hsmall[Tidy data]

```r
pso_agd
```
<PRE class="fansi fansi-output"><CODE>## # A tibble: 4 x 13
## studyc trtc trtclass pasi75_r pasi75_n durnpso_mean durnpso_sd
## &lt;chr&gt; &lt;chr&gt; &lt;chr&gt; &lt;dbl&gt; &lt;dbl&gt; &lt;dbl&gt; &lt;dbl&gt;
## 1 FIXTU~ ETN TNFa bl~ 142 323 1.64 1.2
## 2 FIXTU~ PBO Placebo 16 324 1.66 1.16
## 3 FIXTU~ SEC_~ IL bloc~ 219 327 1.73 1.22
## 4 FIXTU~ SEC_~ IL bloc~ 249 323 1.58 1.23
## # ... with 6 more variables: weight_mean &lt;dbl&gt;, weight_sd &lt;dbl&gt;,
## # bsa_mean &lt;dbl&gt;, bsa_sd &lt;dbl&gt;, prevsys &lt;dbl&gt;, psa &lt;dbl&gt;
</CODE></PRE>

```r
pso_ipd
```
<PRE class="fansi fansi-output"><CODE>## # A tibble: 3,854 x 9
## studyc trtc trtclass pasi75 durnpso weight bsa prevsys
## &lt;chr&gt; &lt;chr&gt; &lt;chr&gt; &lt;dbl&gt; &lt;dbl&gt; &lt;dbl&gt; &lt;dbl&gt; &lt;dbl&gt;
## 1 UNCOV~ IXE_~ IL bloc~ 0 0.67 9.81 0.18 1
## 2 UNCOV~ IXE_~ IL bloc~ 1 1.45 13.0 0.33 0
## 3 UNCOV~ IXE_~ IL bloc~ 1 2.65 7.8 0.33 1
## 4 UNCOV~ IXE_~ IL bloc~ 0 2.5 14.0 0.5 1
## 5 UNCOV~ IXE_~ IL bloc~ 1 1.19 5.42 0.35 1
## 6 UNCOV~ IXE_~ IL bloc~ 1 1.52 6.75 0.290 1
## 7 UNCOV~ IXE_~ IL bloc~ 1 2.41 8.59 0.19 1
## 8 UNCOV~ IXE_~ IL bloc~ 1 1.3 11.5 0.290 1
## 9 UNCOV~ IXE_~ IL bloc~ 1 1.97 6.76 0.18 1
## 10 UNCOV~ IXE_~ IL bloc~ 1 0.71 9.78 0.25 1
## # ... with 3,844 more rows, and 1 more variable: psa &lt;dbl&gt;
</CODE></PRE>

---

.hsmall[Network setup]

```r
pso_net <- combine_network(
 set_ipd(pso_ipd, study = studyc, trt = trtc,
 r = pasi75,
 trt_class = trtclass),
 set_agd_arm(pso_agd, study = studyc, trt = trtc,
 r = pasi75_r, n = pasi75_n,
 trt_class = trtclass)
)
pso_net
```

<PRE class="fansi fansi-output"><CODE>## A network with 3 IPD studies, and 1 AgD study (arm-based).
##
## ---------------------------------------------------- IPD studies ----
## Study Treatments
## UNCOVER-1 3: IXE_Q2W | IXE_Q4W | PBO
## UNCOVER-2 4: ETN | IXE_Q2W | IXE_Q4W | PBO
## UNCOVER-3 4: ETN | IXE_Q2W | IXE_Q4W | PBO
##
## Outcome type: binary
## ---------------------------------------- AgD studies (arm-based) ----
## Study Treatments
## FIXTURE 4: ETN | PBO | SEC_150 | SEC_300
##
## Outcome type: count
## ---------------------------------------------------------------------
## Total number of treatments: 6, in 3 classes
## Total number of studies: 4
## Reference treatment is: PBO
## Network is connected
</CODE></PRE>

---

.hsmall[Network plot]

```r
plot(pso_net,
     weight_nodes = TRUE,
     weight_edges = TRUE,
     show_trt_class = TRUE)
```

---

.hsmall[Adding numerical integration]

```r
pso_net <- add_integration(pso_net,
 durnpso = distr(qgamma, mean = durnpso_mean, sd = durnpso_sd),
 prevsys = distr(qbern, prob = prevsys),
 bsa = distr(qlogitnorm, mean = bsa_mean, sd = bsa_sd),
 weight = distr(qgamma, mean = weight_mean, sd = weight_sd),
 psa = distr(qbern, prob = psa),
 n_int = 1000
)
```

```
## Using weighted average correlation matrix computed from IPD studies.
```

---

.hsmall[Model fitting]

```r
pso_fit_FE <-
 nma(pso_net,
 # FE model
 trt_effects = "fixed",
 # Probit link
 link = "probit",
 # Regression
 regression = ~(durnpso + prevsys + bsa + weight + psa)*.trt,
 #Priors
 prior_intercept = normal(scale = 10),
 prior_trt = normal(scale = 10),
 prior_reg = normal(scale = 10))
```

```
## Note: Setting "PBO" as the network reference treatment.
```

---

.hsmall[Results]

```r
print(pso_fit_FE)
```
```
## A fixed effects ML-NMR with a bernoulli2 likelihood (probit link).
## Regression model: ~(durnpso + prevsys + bsa + weight + psa) * .trt.
##
## Centred covariates at the following overall mean values:
##   durnpso   prevsys       bsa    weight       psa
## 1.8259772 0.6495432 0.2917678 8.9328063 0.2172823
##
## Inference for Stan model: binomial_2par.
## 4 chains, each with iter=2000; warmup=1000; thin=1;
## post-warmup draws per chain=1000, total post-warmup draws=4000.
##
##                mean se_mean   sd  2.5%   25%   50%  75% 97.5% n_eff Rhat
## beta[bsa]     -0.06    0.01 0.44 -0.98 -0.35 -0.05 0.25  0.77  4622    1
##   ...
## beta[bsa:aTNF] 0.05    0.01 0.53 -0.94 -0.32  0.03 0.39  1.09  5010    1
## beta[bsa:aIL]  0.28    0.01 0.49 -0.65 -0.04  0.27 0.61  1.29  5656    1
##   ...
## d[ETN]         1.55    0.00 0.08  1.40  1.50  1.55 1.61  1.71  4276    1
## d[IXE_Q2W]     2.96    0.00 0.09  2.80  2.90  2.95 3.02  3.13  4427    1
## d[IXE_Q4W]     2.54    0.00 0.08  2.39  2.49  2.54 2.60  2.71  4757    1
## d[SEC_150]     2.15    0.00 0.11  1.93  2.07  2.14 2.22  2.37  5465    1
## d[SEC_300]     2.45    0.00 0.12  2.22  2.37  2.45 2.53  2.69  7170    1
##
```

---

.hsmall[Plots of model parameters]

```r
plot(pso_fit_FE,
     pars = c("d", "beta"),
     stat = "halfeye",
     ref_line = 0)
```

---

.hsmall[Population-average relative effects]

```r
(pso_releff_FE <- relative_effects(pso_fit_FE,
 newdata = new_agd_means))
```
```
## --------------------------------------------------- Study: New 1 ----
## Covariate values:
## durnpso prevsys bsa weight psa
## 3 0.1 0.6 10 0.2
##
## mean sd 2.5% 25% 50% 75% 97.5% Bulk_ESS
## d[New 1: ETN] 1.25 0.23 0.81 1.10 1.25 1.40 1.72 6040
## d[New 1: IXE_Q2W] 2.89 0.22 2.46 2.74 2.89 3.03 3.34 6894
## d[New 1: IXE_Q4W] 2.47 0.22 2.04 2.33 2.47 2.62 2.92 7020
## d[New 1: SEC_150] 2.08 0.22 1.65 1.93 2.07 2.22 2.52 7082
## d[New 1: SEC_300] 2.39 0.22 1.94 2.24 2.38 2.53 2.84 7335
```

```r
plot(pso_releff_FE, ref_line = 0)
```

---

.hsmall[Population-average predicted probabilities]

```r
(pso_pred_FE <- predict(pso_fit_FE,
 type = "response",
 newdata = new_agd_int,
 baseline = distr(qnorm, -1.75, 0.08)))
```
```
## --------------------------------------------------- Study: New 1 ----
##
## mean sd 2.5% 25% 50% 75% 97.5% Bulk_ESS
## pred[New 1: PBO] 0.06 0.02 0.03 0.04 0.06 0.08 0.12 5244
## pred[New 1: ETN] 0.37 0.06 0.26 0.33 0.37 0.40 0.49 6711
## pred[New 1: IXE_Q2W] 0.90 0.03 0.84 0.88 0.90 0.92 0.94 5593
## pred[New 1: IXE_Q4W] 0.80 0.04 0.73 0.78 0.81 0.83 0.87 5957
## pred[New 1: SEC_150] 0.68 0.05 0.57 0.64 0.68 0.72 0.79 5905
## pred[New 1: SEC_300] 0.78 0.05 0.68 0.75 0.78 0.81 0.86 5968
```

```r
plot(pso_pred_FE, ref_line = c(0, 1))
```

---

.hsmall[And more...]

```r
pso_cumrankprobs_FE <-
 posterior_rank_probs(pso_fit_FE, newdata = new_agd_means,
 lower_better = FALSE, cumulative = TRUE)
plot(pso_cumrankprobs_FE)
```

---

.hsmall[And more...]

```r
dic(pso_fit_FE)
```

<PRE class="fansi fansi-output"><CODE>## Residual deviance: 3129.7 (on 3858 data points)
## pD: 24.3
## DIC: 3153.9
</CODE></PRE>

```r
# Smoking cessation example
plot(dic_re)
plot(dic_re, dic_ume,
     interval_alpha = 0.05)
```

---
class: middle, inverse

# Further details

---

exclude: true

## Future plans

The multinma package is under active development. Plans for future releases include:
.pull-left.nt3[
* Survival/time-to-event outcomes
* Competing risks
* Node splitting
* Handling disconnected networks/single-arm studies
* Exchangeable interactions
]
.pull-right.nt3[
* Class effects models
* Unequal heterogeneity variances between contrasts
* Regression on baseline risk
* Predictive distributions
]

Interface with other packages:
.flex[
.pull-left.nt3[
* bayesplot, shinystan .dark-green[✔]
* rstan, loo .dark-green[✔]
* tidybayes, ggdist .dark-green[✔]
]
.pull-right.nt3[
* posterior, coda, tidymeta
* gemtc
* nmathresh
]
]
---

## Further details

Package website: **[dmphillippo.github.io/multinma](https://dmphillippo.github.io/multinma)**
<img src="logo.svg" style="width: 12.5%;position: absolute;top: 5%;right: 5%;"/>
* Illustrated documentation
* Detailed walkthroughs of example analyses (vignettes)

Paper:
.ml3[
Phillippo et al. (2020) Multilevel Network Meta-Regression for population-adjusted treatment comparisons. *J R Stat Soc: A*, 183(3):1189-1210. [DOI: 10.1111/rssa.12579](https://doi.org/10.1111/rssa.12579)
]

Contribute:
.ml3[
<svg viewBox="0 0 496 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M165.9 397.4c0 2-2.3 3.6-5.2 3.6-3.3.3-5.6-1.3-5.6-3.6 0-2 2.3-3.6 5.2-3.6 3-.3 5.6 1.3 5.6 3.6zm-31.1-4.5c-.7 2 1.3 4.3 4.3 4.9 2.6 1 5.6 0 6.2-2s-1.3-4.3-4.3-5.2c-2.6-.7-5.5.3-6.2 2.3zm44.2-1.7c-2.9.7-4.9 2.6-4.6 4.9.3 2 2.9 3.3 5.9 2.6 2.9-.7 4.9-2.6 4.6-4.6-.3-1.9-3-3.2-5.9-2.9zM244.8 8C106.1 8 0 113.3 0 252c0 110.9 69.8 205.8 169.5 239.2 12.8 2.3 17.3-5.6 17.3-12.1 0-6.2-.3-40.4-.3-61.4 0 0-70 15-84.7-29.8 0 0-11.4-29.1-27.8-36.6 0 0-22.9-15.7 1.6-15.4 0 0 24.9 2 38.6 25.8 21.9 38.6 58.6 27.5 72.9 20.9 2.3-16 8.8-27.1 16-33.7-55.9-6.2-112.3-14.3-112.3-110.5 0-27.5 7.6-41.3 23.6-58.9-2.6-6.5-11.1-33.3 2.6-67.9 20.9-6.5 69 27 69 27 20-5.6 41.5-8.5 62.8-8.5s42.8 2.9 62.8 8.5c0 0 48.1-33.6 69-27 13.7 34.7 5.2 61.4 2.6 67.9 16 17.7 25.8 31.5 25.8 58.9 0 96.5-58.9 104.2-114.8 110.5 9.2 7.9 17 22.9 17 46.4 0 33.7-.3 75.4-.3 83.6 0 6.5 4.6 14.4 17.3 12.1C428.2 457.8 496 362.9 496 252 496 113.3 383.5 8 244.8 8zM97.2 352.9c-1.3 1-1 3.3.7 5.2 1.6 1.6 3.9 2.3 5.2 1 1.3-1 1-3.3-.7-5.2-1.6-1.6-3.9-2.3-5.2-1zm-10.8-8.1c-.7 1.3.3 2.9 2.3 3.9 1.6 1 3.6.7 4.3-.7.7-1.3-.3-2.9-2.3-3.9-2-.6-3.6-.3-4.3.7zm32.4 35.6c-1.6 1.3-1 4.3 1.3 6.2 2.3 2.3 5.2 2.6 6.5 1 1.3-1.3.7-4.3-1.3-6.2-2.2-2.3-5.2-2.6-6.5-1zm-11.4-14.7c-1.6 1-1.6 3.6 0 5.9 1.6 2.3 4.3 3.3 5.6 2.3 1.6-1.3 1.6-3.9 0-6.2-1.4-2.3-4-3.3-5.6-2z"></path></svg> [dmphillippo/multinma](https://github.com/dmphillippo/multinma)
]

.center.mt10[
### Thank you

**<svg viewBox="0 0 512 512" xmlns="http://www.w3.org/2000/svg" style="height:1em;fill:currentColor;position:relative;display:inline-block;top:.1em;"> [ comment ] <path d="M459.37 151.716c.325 4.548.325 9.097.325 13.645 0 138.72-105.583 298.558-298.558 298.558-59.452 0-114.68-17.219-161.137-47.106 8.447.974 16.568 1.299 25.34 1.299 49.055 0 94.213-16.568 130.274-44.832-46.132-.975-84.792-31.188-98.112-72.772 6.498.974 12.995 1.624 19.818 1.624 9.421 0 18.843-1.3 27.614-3.573-48.081-9.747-84.143-51.98-84.143-102.985v-1.299c13.969 7.797 30.214 12.67 47.431 13.319-28.264-18.843-46.781-51.005-46.781-87.391 0-19.492 5.197-37.36 14.294-52.954 51.655 63.675 129.3 105.258 216.365 109.807-1.624-7.797-2.599-15.918-2.599-24.04 0-57.828 46.782-104.934 104.934-104.934 30.213 0 57.502 12.67 76.67 33.137 23.715-4.548 46.456-13.32 66.599-25.34-7.798 24.366-24.366 44.833-46.132 57.827 21.117-2.273 41.584-8.122 60.426-16.243-14.292 20.791-32.161 39.308-52.628 54.253z"></path></svg> dmphillippo**
]
